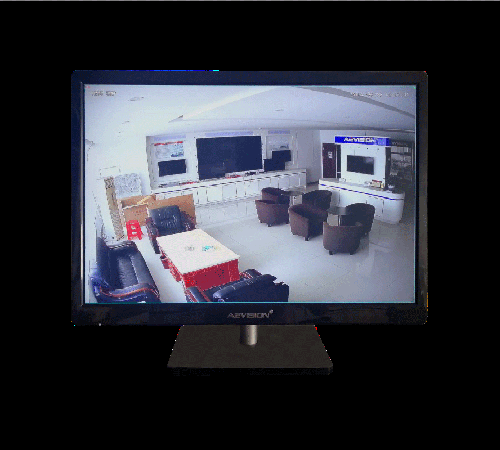

22″Professional LED Monitor
 Zigoratsecurit

 Model: ZS-LED22 Z-2K





Features

1. HD: 1920*1080, 4 times higher than normal monitor.

2. Turn on the screen to automatically detect the resolution of the input signal in the upper right corner of the screen.

3. Clear: delicate and realistic, conveying true colors, showing the true colors.

4. Bright: The quality is improved, only for better presentation.

5. Adopt industrial screen, high brightness, high contrast.

6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

7. Adopt 10bit image chip processing technology, high pixel progressive scan, fine texture.

8. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

9. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

10. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

11. 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

12. Using nanotechnology, the picture is more three-dimensional, transparent.

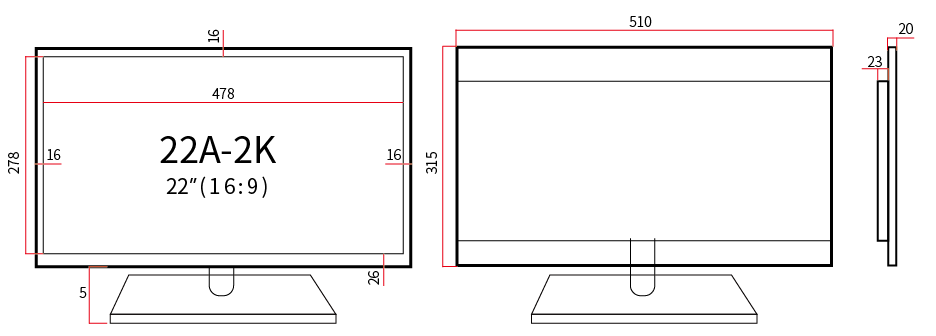

Dimension




Specification



Product type: Professional Monitor Zigoratsecurity

Product model: ZS-LED22Z-2K

Screen size: 22"

Screen type: LED

Screen ratio: 16:9

Brightness: 450nit

Contrast ratio: 3000:1

Response time: 5 ms

Visual area: 478*276

Viewing angle: 160°/ 170°

Display color: 16.7M

Clearness: 1920*1380

Control method: panel infrared

Input port: HDMI, VGA

Audio Output: 2 stereo speakers

Power supply mode: 220V / 0. 7A

Power frequency: 50Hz

Total power: 50W

Case: professional fireproof iron case

Product outer dimensions:  510*315 does not include foot height (foot height 25mm)

Installation method: base, wall mount (with 4 * Hexagonal column screw)

Product weight: 2.4kg

Packing: (1pcs) 550*430*105 /3.3kg; (5pcs) 560*440*540/17.5kg Working environment temperature: most suitable for 20

Working environment temperature: most suitable for 20

Working environment humidity: 10%-90% RH

Storage temperature: - 20~ 60
